RF board tests need defined reference points, power supplies and bias conditions before final mechanical integration.
Why this matters in the industry

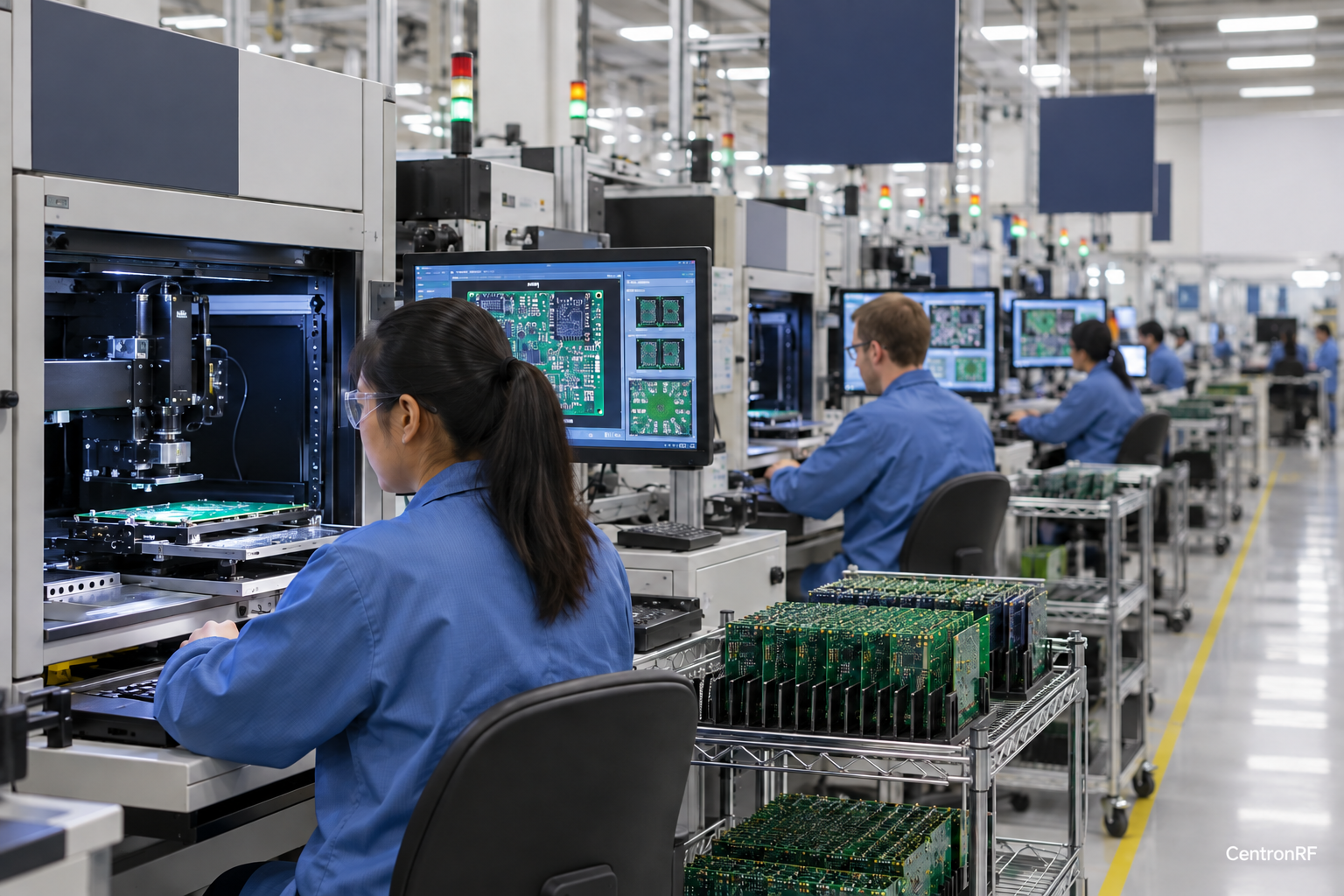

Electronics manufacturers often screen boards early to reduce expensive rework after enclosure assembly.
The technical reasoning
Board-level conducted testing isolates electrical behavior before the enclosure and antenna are integrated. Final integration adds detuning, shielding, coupling and spatial propagation effects. A board pass therefore establishes a useful subset of system behavior but cannot substitute for appropriate checks of the completed radio assembly.
A controlled link is not a complete propagation environment
Static attenuation changes signal level but does not reproduce all channel impairments. A real wireless link can include time-varying fading, multipath, Doppler, interference and changing antenna geometry. Receiver behavior also depends on acquisition, tracking and adaptation loops. A conducted experiment is valuable because it isolates selected variables, but its controlled simplicity must remain visible when interpreting a result for a deployment or moving platform.
How to structure the investigation
Identify temporary RF connections and any DC present at them. Characterize probe or adapter loss and secure the board mechanically. Compare early-stage results with final assembly data so the screening criterion reflects the changed RF environment.
State which impairment is deliberately varied and which conditions stay fixed. Define the observed outcome, sample duration and receiver state, then repeat the experiment under relevant configurations. Use a channel emulator or field observations when the question requires time variation or spatial effects. Tie bench findings to a stated deployment model rather than converting a laboratory loss value directly into a guaranteed distance or availability percentage.
Worked example or engineering scenario
A module meets conducted power and sensitivity targets before assembly, yet its installed antenna is detuned by nearby metal. The earlier conducted result can remain correct while the final radiated link worsens.
Evidence to collect
| Record | Purpose |
|---|---|
| Board support | Defines the tested state and scope of the comparison. |
| Bias state | Makes the stimulus or route condition reproducible. |
| Temporary path loss | Supports interpretation of variation and possible confounding effects. |
| Final-test correlation | Connects the observation with the stated engineering decision. |
Trade-offs and common interpretation errors
A working static link may fail to acquire after an abrupt change, or may behave differently in interference than in noise. Report those experiments separately. A bench threshold is evidence about the defined test, while coverage and availability conclusions require additional assumptions and representative environmental evidence.
What the result can support
Use staged tests to localize defects and retain final-system coverage for effects introduced by integration.
Board-level screening does not establish finished-product antenna performance.
